Signage Solutions LED Display

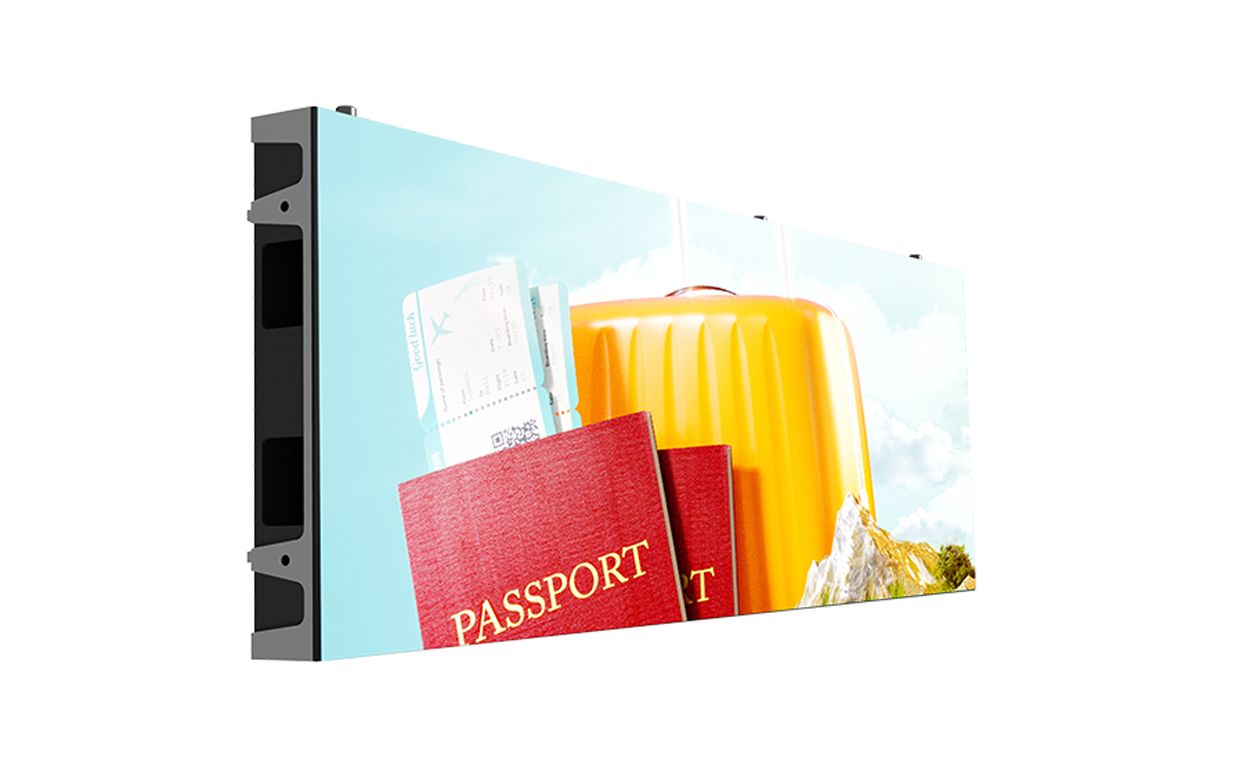

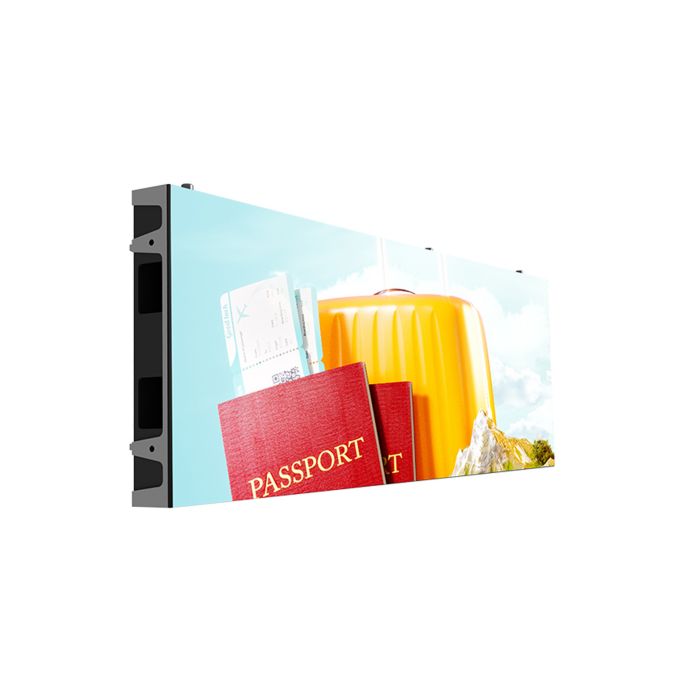

31BDL7439L/00

Unleash your imagination even more

No limits. No boundaries. Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.

See all benefits

Signage Solutions LED Display

Similar products

See all L-Line series

Unleash your imagination even more

LED Display for every form and shape

  • 31''
  • Direct View LED

Available in 3 dimensions

Patented easy-mount brackets make installation even faster. These optional items are available for flat LED mounting, convex curved (177.5/175/172.5 degree), and L-shape 90 degree corners.

Conformal coating and ingress protection

Dust, dirt, fungus and moisture resistant conformal coating protects this product and enables easier maintenance. IP30 rated and certified against ingress for reduced chance of short circuit from dust and corrosion.

Dynamic Panel Connect

Mix and match each of the Philips L-Line 7000 LED panel sizes to form a single display of any shape and dimension. Dynamic flexible alignment pins ensure a perfect fit in any circumstance - resulting in a smooth, seamless display surface. For added convenience and efficiency, each LED panel features openings on each side to allow for versatile wired connection between the LED panels and any external input connection. Openings on the top and bottom of the LED panel can be popped out in case access is only available from the top or bottom of the panel.

Dynamic Power Saving

Philips Professional LED Displays use high-performance LEDs, which are tested thoroughly, energy efficient and cost effective. Furthermore, enhanced technology allows the display to dynamically save on power consumption.

Factory calibrated

Every Philips L-Line LED panel is calibrated in our factory under perfect circumstances. That means there's no need for further calibration on location, resulting in quicker installations. Calibration and configuration files are available to ensure fast maintenance.

Fire retardant design

Fire retardant design slows down the spread of flames in the event of fire, and help protect the structural integrity of the LED panel in case of fire. Tested and certified with Fire Safety Certifications.

Forms any shape, L-shape corner, or curvature

The Philips L-Line 7000 series LED panles come with a height of 25 cm and are available in 50 cm, 75 cm and 100 cm widths. These displays are ready to be installed in any landscape format with no limitations to size. Also available with bevelled corners to form curved designs in both convex and concave formats.

High brightness LED panel

Visualize all kinds of content in any setting. Make a big impact with crisp and clear messaging in bright locations, such as storefront windows or places subject to direct sunlight. This high bright LED panel is perfect for attracting attention in large, busy areas that are subject to high ambient light.

Optional bevelled corners allow curved displays

Create bezel-free displays of any shape, size or resolution. The modular design of Philips Professional LED panels means you can adapt to any space. Build vast, immersive installations or assemble intriguing patterns. Easily create displays that flow seamlessly around doorways and other openings. Even corners and curved displays become easy to create with the new Philips 7000 series.

Philips Active Health Monitoring

Achieve perfection through precision. Active Health Monitoring makes maintenance fast, simple, and predictable by displaying the exact item of failure and location. Utilising this software that works in real-time both online and offline, replacing the relevant part becomes an efficient process, and a must for display owners with many geographical locations.

Seamless linking for perfect imagery

Your Philips Professional LED Display features built-in cable wiring to keep power and data cables tidy. Display panels are daisy-chained for both power and data, allowing you to minimise clutter and speed up installation.

Technical Specifications

  • Picture/Display

    Aspect ratio
    4:1
    Brightness uniformity
    >=97%
    Brightness after calibration
    2650 nits
    Brightness before calibration
    3500 nits
    Calibration(brightness/color)
    Supported
    Color temperature adjust range
    4000~9500 K (by software)
    Color temperature default
    6500±500 K
    Contrast ratio (typical)
    11000:1
    Viewing angle (horizontal)
    140  degree
    Viewing angle (vertical)
    140  degree
    Picture enhancement
    Wide color gamut display
    Placement
    Landscape
    Frame frequency (Hz)
    50 & 60
    Refresh rate(Hz)
    2100~3900 (14 bits:3900Hz)
    Usage
    Indoor
  • Convenience

    Ease of installation
    • Guide pins
    • Light weight
    Power loop through
    For 230V environments: 8 cabinets or less, for 110V environments: 4 cabinets or less, 10A max
    Signal control loop through
    RJ45
  • Power

    Input voltage
    AC100~240V (50 & 60Hz)
    Black screen power cons. (W)
    <10
    Max. power cons. AC (W)
    <108.3
    Max. power cons. BC (W)
    <148.8
    Typical power cons. (W)
    <36.1
  • Operating conditions

    Temperature range (operation)
    -20~45  °C
    Temperature range (storage)
    -20~50  °C
    Humidity range (operation)[RH]
    10~80%
    Humidity range (storage) [RH]
    10~85%
  • Cabinet

    Cabinet area (m2)
    0.1875
    Cabinet pixels ( Dot )
    12,288
    Cabinet resolution (W x H)
    192 x 64
    Cabinet size (mm)
    750x250x40
    Data connector
    RJ45
    Power connector
    3 core socket (C14 in, C13 out)
    Receiving card quantity
    1 pcs
    Receiving card spec.
    A5S Plus
    Receving card brand
    NovaStar
    Weight (KG)
    4.73Kg (±237g)
    Cabinet diagonal (inch)
    31.1"
    Cabinet construction
    Die-Casting Aluminum
    Side angle (degree)
    90
  • Module

    LED type
    SMD 1921 Copper wire
    Pixel constitution
    1R1G1B
    LED lifetime(Hrs)
    100,000 at half brightness
    Module resolution (WxH pixels)
    64x64
    Pixel pitch (mm)
    3.9
    Module size (WxH in mm)
    249.9*249.9
  • Accessories

    LAN cable (RJ45, CAT-5)
    1 pcs
    Power cable
    2 pcs
    QSG
    1 pcs
  • Miscellaneous

    Warranty
    2 years
    Regulatory approvals
    • EN55032
    • EN55035
    • EN61000-3-2
    • EN61000-3-3
    • IEC/UL60950
    • IEC/UL62368
    • IEC62471
    • RoHS
    • FCC SDOC, Part 15, Class A
    • EAC
    Fire retardancy certification
    • BS 476 Part7:1997
    • UL94
    Conformal coating
    hub board, backside LED module
  • Packaging Data

    Dimension of packaging (mm)
    950x421x224
    Gross weight (KG)
    9.40
